MODULEX HOOK ON CEILING SYSTEM
INTRODUCTION
The hook-on system is specially designed for where regular access is important for maintenance. These systems are mostly used where the ceiling layout is special and important, and you can choose any module, like rectangular-shaped panels, square panels without size limitation, trapezoidal designs, triangular-shaped panels, etc.

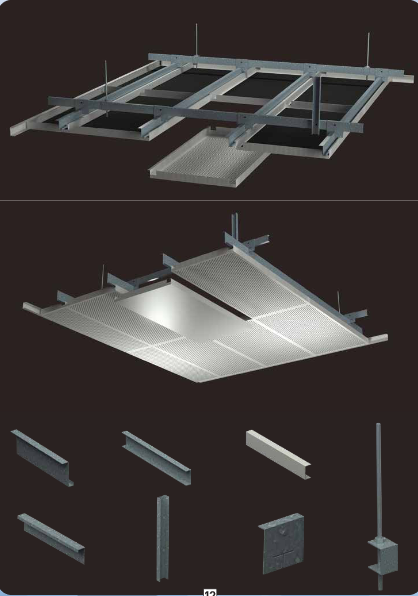

Hook-on tiles are designed to be supported by a custom J-carrier suspension system and can carry heavy, large panels as well. The system is available in aluminum and galvanized steel with polyester and powder-coated finishes. Acoustics and insulation can be done upon request, and other details can be submitted upon the inquiry.

PRODUCT
- Cell Type- Square Edge U shaped with 10mm base.
- Cell Sizes- 50x50mm, 75x75mm, 100x1000mm, 150x150mm and other custom sizes are available upon request.
- Cell Height- 40mm standard height.
- Assembly- 600x600mm modules.
- Panel Thickness- 0.40mm
- Surface Finish- Plain and Perforated.
- Raw Material- Aluminium
- Color: White RAL 9010/9003 and Black RAL 9005, other colors are available upon request.
