MODULEX CLIP IN Metal Ceiling
INTRODUCTION

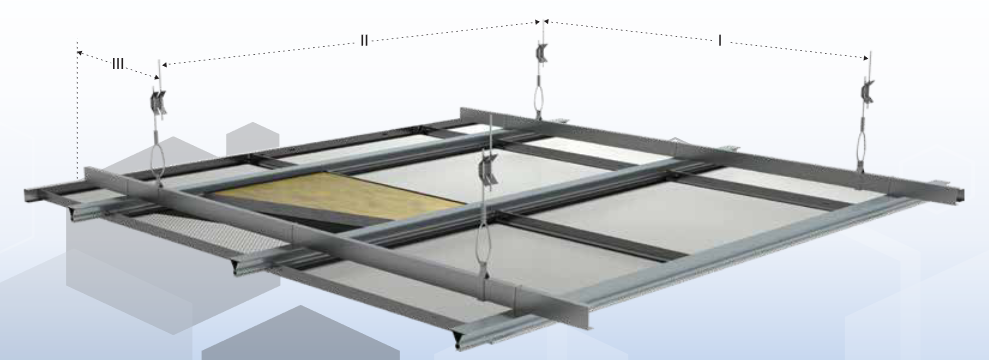

Concealed Clip in metal ceiling, widest applicable among all type of ceilings with outstanding advantages in the market. The product has a range of square and rectangular panels on a fully accessible concealed suspended ceiling system with support framework for interior or exterior use. It is cost effective and economical system with complete downwards demountability for periodic maintenance and can apply for small service rooms to large commercial office buildings like hospitals, schools, stores, airport and railway stations etc. Fire Rated CLIPIN System with higher specification was developed and tested for 115 minutes Fire Rated system as per BS 476: Pat 23: 1987, Clause 5, the system was specially developed for projects with high end specifications in relation to Fire ratings.
PRODUCT
- Types- Standard clip in system, Hinge down clip in system and Fire Rated Clip in system
- Sizes- 300x300mm, 300x600mm, 600x600mm and 600x1200mm and other sizes are available upon request.
- Panel Thickness- 0.50 to 1.0mm Surface Finish- Plain/ Perforated / Combination of both (standard perforation is 1.80mm diameter holes with diagonal pattern, other patterns can be made upon request).
- Raw Material- Aluminium Alloy as per EN AW 3000 or 5000 series / Zinc plated galvanized steel or stainless steel (Brush/Mirror) as per ASTM A635-01.
- Panel Edge- Beveled 3mm, beveled 5mm and square edge.

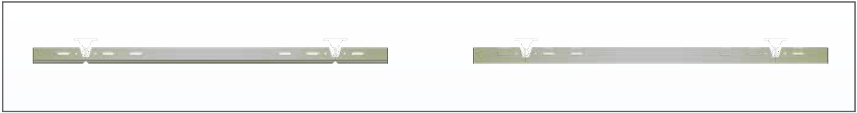

PANEL EDGES

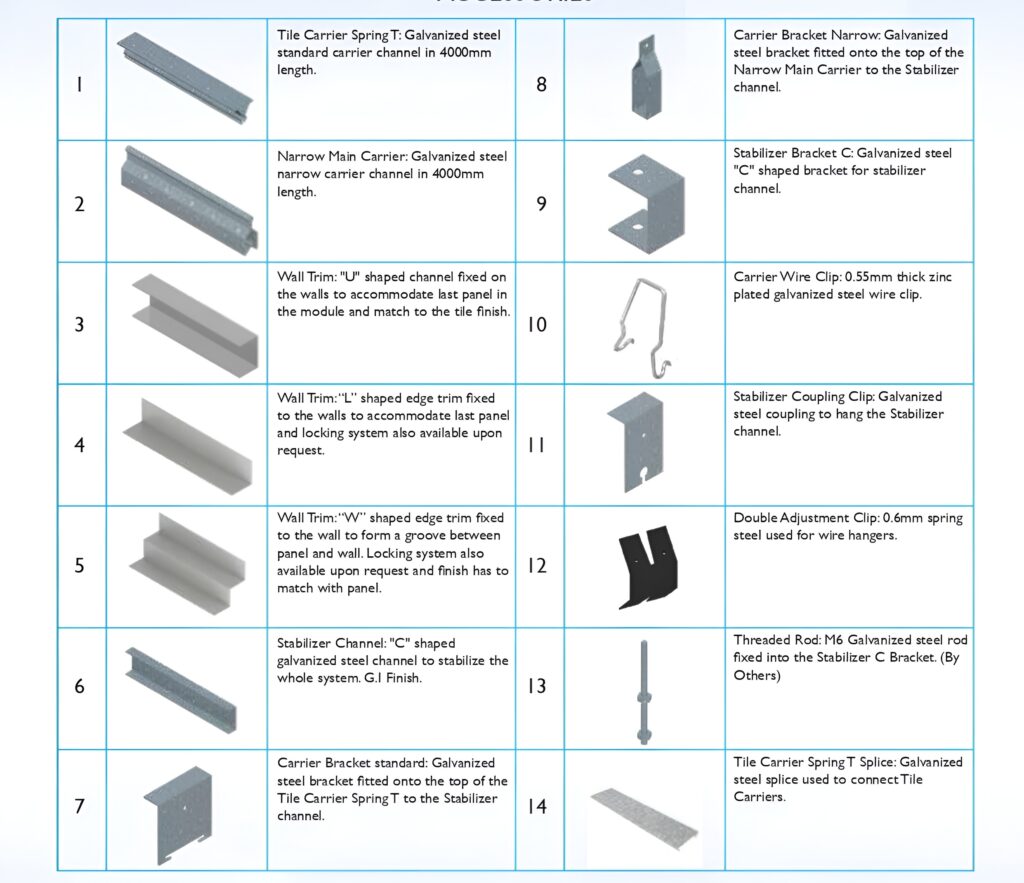

ACCESSORIES
